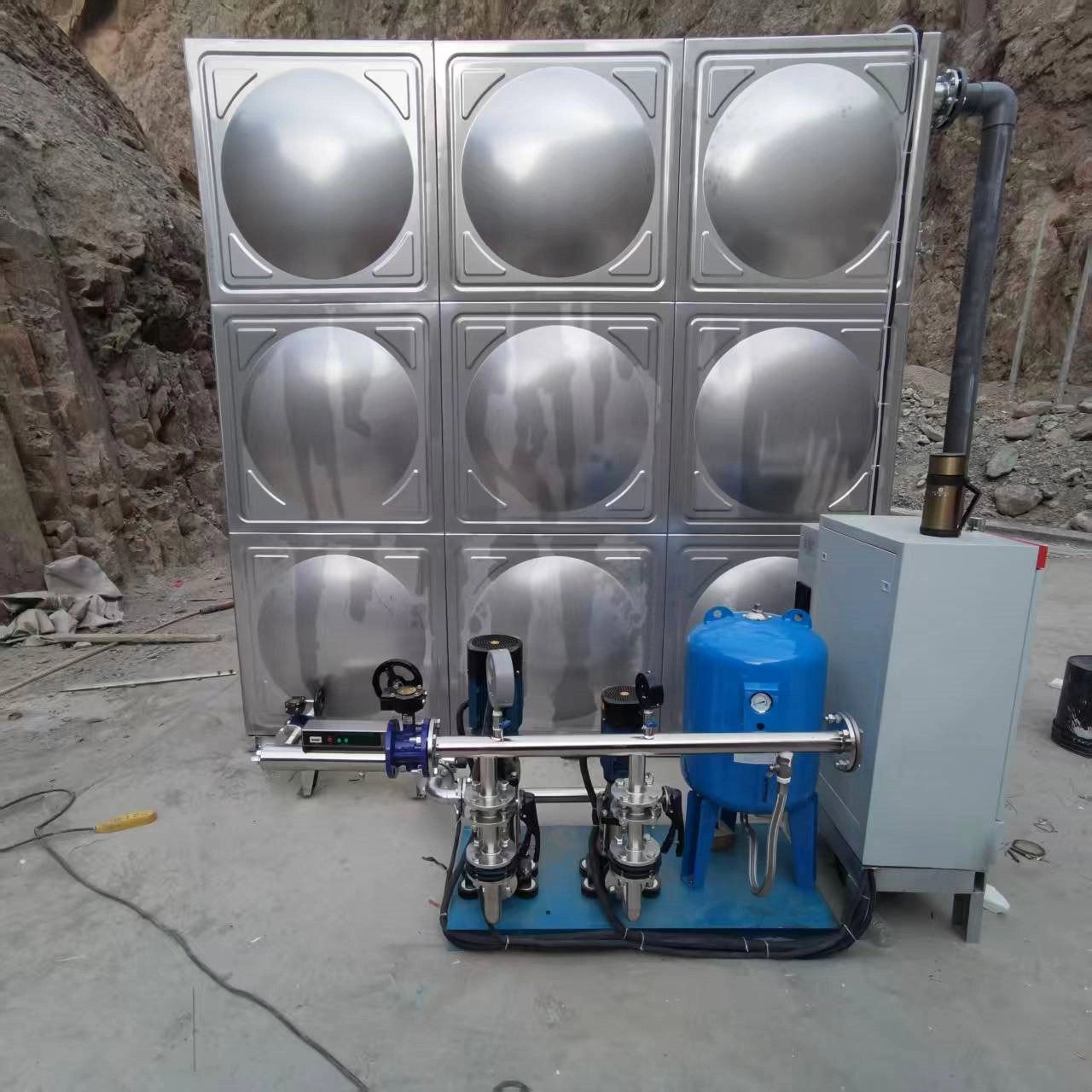

Box-type variable frequency water supply equipment

Product Introduction

Product Description
Product Features	1. Low infrastructure investment: No need to build water towers, reservoirs, etc. 2. Intelligent variable frequency operation, energy saving! The intelligent control system ensures that the pump set always operates at high efficiency, making it more stable and energy-saving! 3. Stable water pressure and intelligent water volume regulation! Fully utilizing the water tank’s water volume regulation and storage functions reduces the impact of secondary water supply equipment on the water supply network and can still provide water supply for a certain period during water outages, fully ensuring the pressure at the end of the system.
Pressure control	Variable frequency control
Energy saving control	frequency conversion
Convenient management	Bohai Remote Monitoring System has functions such as remote monitoring, equipment energy consumption analysis, application decision-making, equipment management, and comprehensive query, realizing real-time connection between people, data, and equipment, and truly achieving the goal of unattended operation.
Installation/Cost Control
Application Scope	1. High-rise buildings, residential communities, office buildings, etc.; 2. Hotels, restaurants, etc.; 3. Schools, military units, government agencies, dormitories, and other places with high water usage; 4. Hospitals, shopping malls, convention centers, stadiums, public bathhouses, and other public places; 5. Firefighting water where the city’s tap water pressure cannot meet the water requirements of fire hydrant systems or automatic sprinkler systems; 6. Large-scale centralized water supply for large factories, booster pump stations, development zones, etc.; 7. Production and domestic water for industrial and mining enterprises; 8. Various circulating water systems; 9. Water supply situations with particularly strict water quality requirements.
Other features	This system is suitable for situations where there is no tap water source (e.g., well water, river water), pressurization is required, the municipal water supply network cannot meet the requirements for pressure boosting, or pressure boosting is prohibited by relevant regulations or local water authorities. It utilizes a water tank + frequency converter combined water supply method to provide secondary pressurization to users. Its features include fully utilizing the water tank’s water volume regulation and storage functions, reducing the impact of secondary water supply equipment on the water supply network, and providing water supply for a certain period during water outages, thus ensuring sufficient pressure at the system’s end.

name	Constant pressure variable frequency water supply equipment (standard configuration)
Water supply flow rate (Q):	0.4 m3/h~1080 m3/h
Water supply pressure (H):	6m~305m
Footprint:	Follow up on actual project design
Operating method:	Variable frequency operation: General-purpose intelligent control software: One software with 576 operating modes for intelligent switching.
Protection/Alarm:	Low flow protection, water shortage or water outage protection, pipe burst shutdown, etc.
Equipment Material:	304 stainless steel
Protection level:	IP55
Installation requirements:	concrete foundation
Power supply capacity:	380V (+10%, -15%), 50HZ (±5%), should have a good grounding wire, with a grounding resistance of less than 4 ohms.
Work environment:	For indoor installation and use, it will not freeze at 0-40℃, will not condense below 90%RH, and will not produce corrosive, flammable, or explosive gases.
Altitude, vibration:	Below 1000m altitude, below 5.9m/s (0.6g)
Product Configuration:	Follow up on the actual situation of the project and the configuration requirements of the client.
Warranty period:	5-year warranty, lifetime maintenance (customized products are subject to the contract).
Product Highlights:	This system is suitable for situations where there is no tap water source (e.g., well water, river water), pressurization is required, the municipal water supply network cannot meet the requirements for pressure boosting, or pressure boosting is prohibited by relevant regulations or local water authorities. It utilizes a water tank + frequency converter combined water supply method for secondary pressurization to users. Features: It fully utilizes the water tank’s water volume regulation and storage functions, reduces the impact of secondary water supply equipment on the water supply network, and provides water supply for a certain period during water outages, ensuring sufficient pressure at the system’s end.

Application Scope

High-rise residential buildings: To compensate for insufficient pressure in municipal water supply pipelines and ensure water supply for residents living and working in high-rise buildings;

Highways: To compensate for insufficient pressure in municipal water supply pipelines and ensure water supply for residents living and working in high-rise buildings;

Factory and office buildings: To compensate for insufficient pressure in municipal water supply pipelines and ensure water supply for residents living and working in high-rise buildings;

Hotels and guesthouses: To compensate for insufficient pressure in municipal water supply pipelines and ensure water supply for residents living and working in high-rise buildings;

Schools and hospitals: To compensate for insufficient pressure in municipal water supply pipelines and ensure water supply for residents living and working in high-rise buildings;

Rural communities: To compensate for insufficient pressure in municipal water supply pipelines and ensure water supply for residents living and working in high-rise buildings;
